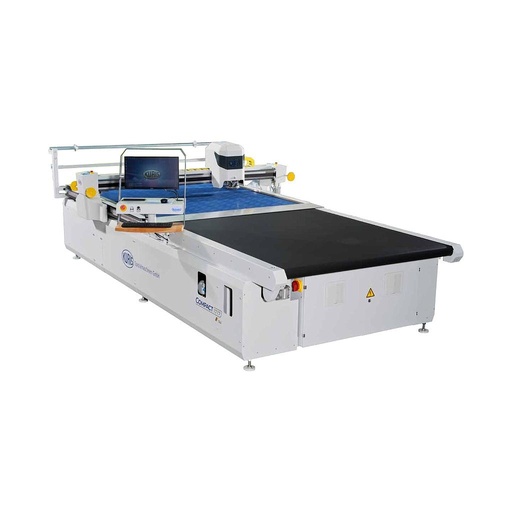

Cutting window width: 2230 mm (effective 2200 mm)
Cutting window length: 1700 mm (effective 1500 mm)
Clearing conveyоr length: 1900 mm
Total length: 4700 mm

105283 Cutting head SK45
reinforced knife 2,5x8mm
cutting height 43 mm compressed

Maximal cutting height: up to 40 mm (depending on tool)
Maximal cutting speed: up to 90 m/min
Maximal positioning speed: up to 120 m/min
Maximal acceleration: up to 9 m/s2
Cutting window working width: 1750 mm (with 2nd or 3rd tool 1700 mm)
Cutting window working length: programmable 2300 - 3500 mm
Clearing conveyor length: programmable 400 - 1700 mm
Total length: 5000 mm
Weight of the cutter: 2300 kg
Operating voltage: 400 V, 50/60 Hz, 3 phases
Control power consumption: up to 6 kW
Fuse: 35 A (cable 5x6mm2)
Protection class: Class 1
Air consumption: up to 12 l/min at 6,5 bar
67690 Vacuum pump with frequency inverter 11kW - 1 pcs.
103473 Basic Head Heavy Duty with C+Z axes - 1 pcs.
77000 Round knife driven power tool - 1 pcs.
78323 Option base plate head - 1 pcs.
76186 Cutting plate for leather - 1 pcs.
75520 Velenas prispaudimui 1800 - 1 pcs.
87252 Cleaning device for conveyor belt - 1 pcs.
100660 Drill device TC3001/CUTTY (double cylinder) - 1 pcs.
Packing - 1 pcs.

Year of construction 2020

Disposable Mask One-to-Two Production Line
RPUM-NF28-4USW-2-10×10-T-VSA-LF1500-NA-3P380（2 SETS）
Fully automated surgical mask machine with two conveyor tracks.
Suitable for 3 layers disposable masks.
Declared spee by manufacturer- 100 pcs/min.
Size- 5500mm×4850mm×2100mm (L×W×H)
Power supply- Single-phase 220V/50Hz or Three-phase 380V/50Hz
Power 20kW
Material- PP Nonwoven Composite Fiber
Mask Type- Medical Mask/Surgical Mask
Processing Mode- Ultrasonic Welding
Air pressure- 0.6 MPa
Installation Area- 5500mmX4850mmX2100mm (LxWxH)
Mask size: 175mmX95mm
Servo Motor- Panasonic/Schneider
Ultrasonic generator 220V, 20 kHz, 1.5 kW
Sensor- Omron/Sick
Pneumatic component SMC/FESTO
Operation Panel- LCD Touch screen
Belt- Samsung/Bando
Main Body- Assembly with welding and Aluminium
Bearing- NSK

1. The material stand is equipped with tension control device to ensure the fabric tension to maintain a stable value.
2. Three layers fabrics (top fabric, filter fabric and bottom fabric) feeding in auto-align, sides symmetrically welding by ultrasonic, and continuously cutting to mask pieces by welding roller, then distributed to two ear-loop welding stations to improve the production efficiency. Auto mask stack counting function after ear-loop welding.
3. The production line is 1-to-2 design. After the blank mask making machine, the blank mask will be automatically distributed and transported to the two ear-loop welding stations through the transmission system.
4. Nose clip is feeding and cutting automatically.
5. Ear-loop is cutting and ultrasonic welding automatically.

Printing width: up to 1,8 m
Printing speed: up to 75/90 sq.m./h
Dimensions: 2,60 x 0,57 x 1,17 m
Weight: 140 kg
Printing heads: 2 x Algotex specialios HP45 up to 300 dpi resolution
Paper wind up system: on bar or free paper
Power supply: 110-240 V 50 Hz (Recommended to use Smart UPS);
Power requirements: up to 100 W
Paper density: from 20 to 75 g/sq.m.
Max. paper roll weight: 35 kg
Max. paper roll diameter: 20 cm
Printing formats: HPGL, HPGL/2, ISO
